NEW QUESTION 1
Which two reasons make forward error correction (FEC) ideal to enable in a phase one VPN interface? (Choose two )

• A. FEC transmits the original payload in full to recover the error in transmission.
• B. FEC improves reliability which overcomes adverse WAN conditions such as noisy links.
• C. FEC is useful to increase speed at which traffic is routed through IPsec tunnels.
• D. FEC transmits additional packets as redundant data to the remote device.
• E. FEC reduces the stress on the remote device jitter buffer to reconstruct packet loss

Answer: BD

NEW QUESTION 2
In the default SD-WAN minimum configuration, which two statements are correct when traffic matches the default implicit SD-WAN rule? (Choose two )

• A. Traffic has matched none of the FortiGate policy routes.
• B. Matched traffic failed RPF and was caught by the rule.
• C. The FIB lookup resolved interface was the SD-WAN interface.
• D. An absolute SD-WAN rule was defined and matched traffic.

Answer: AC

NEW QUESTION 3

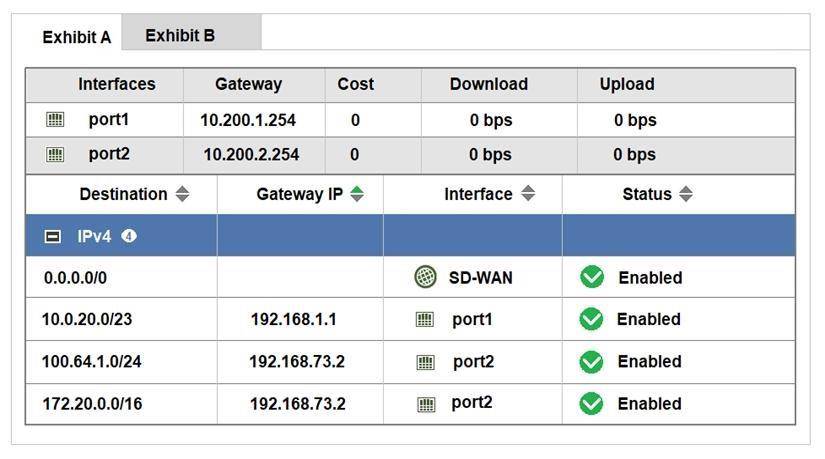

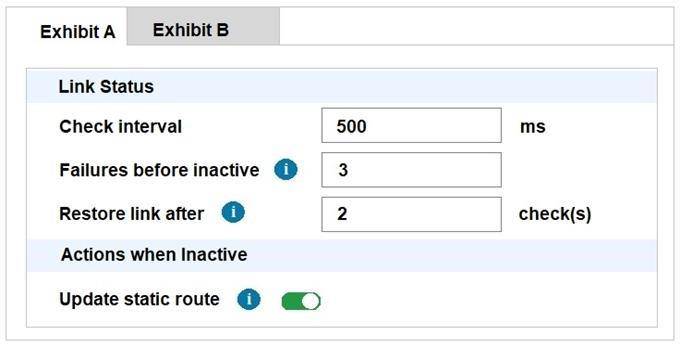

Refer to exhibits. Exhibit A.

Exhibit B.

Exhibit A shows the SD-WAN performance SLA and exhibit B shows the SO-WAN interface and the static
routes configuration.
Port1 and port2 are member interfaces of the SD-WAN, and port2 becomes a dead member after reaching the failure thresholds
Which statement about the dead member is correct?

• A. Subnets 100 .64.1.0/23 and 172 . 20 . 0. 0/16 are reachable only through port1
• B. SD-WAN interface becomes disabled and port1 becomes the WAN interface
• C. Dead members require manual administrator access to bring them back alive
• D. Port2 might become alive when a single response is received from an SLA server

Answer: A

NEW QUESTION 4
Which two statements reflect the benefits of implementing the ADVPN solution to replace conventional VPN topologies? (Choose two )

• A. It creates redundant tunnels between hub-and-spokes, in case failure takes place on the primary links.D18912E1457D5D1DDCBD40AB3BF70D5D
• B. It dynamically assigns cost and weight between the hub and the spokes, based on the physical distance.
• C. It ensures that spoke-to-spoke traffic no longer needs to flow through the tunnels through the hub.
• D. It provides direct connectivity between all sites by creating on-demand tunnels between spokes.

Answer: CD

NEW QUESTION 5

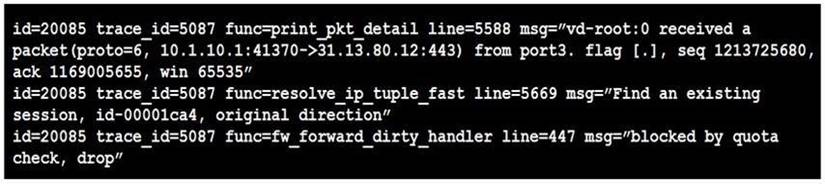

Refer to the exhibit.

Which statement about the trace evaluation by FomGate is true?

• A. Packets exceeding the configured maximum concurrent connection limit are denied by the per-IP shaper.
• B. The packet exceeded the configured bandwidth and was dropped based on the priority configuration.
• C. The packet exceeded the configured maximum bandwidth and was dropped by the shared shaper.
• D. Packets exceeding the configured concurrent connection limit are dropped based on the priority configuration.

Answer: A

NEW QUESTION 6
Which statement is correct about the SD-WAN and ADVPN?

• A. ADVPN interface can be a member of SD-WAN interface.
• B. Dynamic VPN is not supported as an SD-Wan interface.
• C. Spoke support dynamic VPN as a static interface.
• D. Hub FortiGate is limited to use ADVPN as SD-WAN member interface.

Answer: A

NEW QUESTION 7
Which statement defines how a per-IP traffic shaper of 10 Mbps is applied to the entire network?

• A. FortiGate allocates each IP address a maximum 10 Mbps of bandwidth.
• B. Each IP is guaranteed a minimum 10 Mbps of bandwidth
• C. A single user uses the allocated bandwidth divided by total number of users.
• D. The 10 Mbps bandwidth is shared equally among the IP addresses.

Answer: A

NEW QUESTION 8
Which components make up the secure SD-WAN solution?

• A. Application, antivirus, and URL, and SSL inspection
• B. Datacenter, branch offices, and public cloud
• C. FortiGate, FortiManager, FortiAnalyzer, and FortiDeploy
• D. Telephone, ISDN, and telecom network.

Answer: C

NEW QUESTION 9

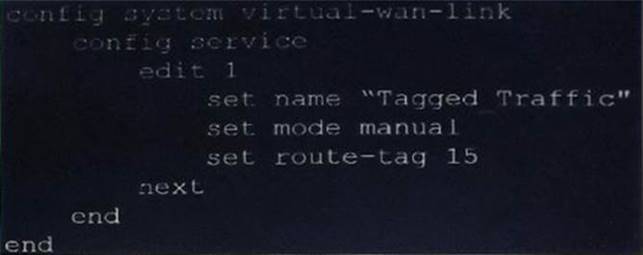

Refer to the exhibit.

Which statement about the command route-tag in the SD-WAN rule is true?

• A. It enables the SD-WAN rule to load balance and assign traffic with a route tag
• B. It tags each route and references the tag in the routing table.
• C. It uses route tags for a BGP community and assigns the SD-WAN rules with same tag.
• D. It ensures route tags match the SD-WAN rule based on the rule order

Answer: D

NEW QUESTION 10
Which three parameters are available to configure SD-WAN rules? (Choose three.)

• A. Application signatures
• B. Type of physical link connection
• C. URL categories
• D. Source and destination IP address
• E. Internet service database (ISDB) address object

Answer: BDE

NEW QUESTION 11

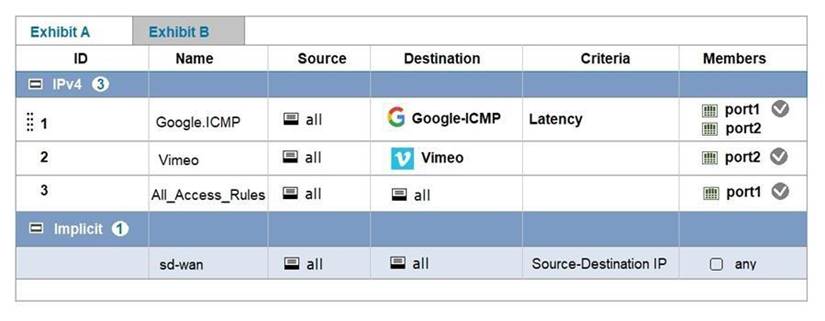

Refer to exhibits.


Exhibit A shows the SD-WAN rules and exhibit B shows the traffic logs. The SD-WAN traffic logs reflect how FortiGate processed traffic.
Which two statements about how the configured SD-WAN rules are processing traffic are true? (Choose two.)

• A. The implicit rule overrides all other rules because parameters widely cover sources and destinations.
• B. SD-WAN rules are evaluated in the same way as firewall policies: from top to bottom.
• C. The All_Access_Rules rule load balances Vimeo application traffic among SD-WAN member interfaces.
• D. The initial session of an application goes through a learning phase in order to apply the correct rule.

Answer: AB
